Running the Benchmark

This guide covers different ways to launch the AORTA benchmark on CUDA and ROCm systems.

Quick Start

ROCm

bash scripts/launch_rocm.sh config/default.yaml

CUDA

bash scripts/launch_cuda.sh config/default.yaml

Both scripts:

Default to config/default.yaml but accept an override as the first argument
Query torch.cuda.device_count() to size --nproc_per_node
Fall back gracefully when detection fails
Export PYTHONPATH=$REPO_ROOT/src so the aorta package is discoverable

Direct Invocation

For more control over the launch:

torchrun --nproc_per_node 4 train.py --config config/default.yaml --override training.max_steps=100

Use dotted --override arguments to mutate configuration values without editing the YAML file.

Torch Compile Acceleration

Enable AOT compilation by toggling the compile block or CLI overrides:

torchrun --nproc_per_node 4 train.py \
  --config config/default.yaml \
  --override compile.enabled=true compile.backend=inductor compile.mode=max-autotune

Compile Behavior

The toolkit compiles the FSDP-wrapped model and falls back gracefully if torch.compile raises (logging the reason).
On ROCm, torch.compile with backend=inductor is still experimental; the launcher automatically downgrades to the safer aot_eager backend when necessary.
You can override this by explicitly passing another backend (e.g., compile.backend=aot_eager).
Tune compile.fullgraph, compile.dynamic, or compile.options (passed directly to torch.compile) to match your workload characteristics.
Compilation occurs per rank, so expect extra time on the first iteration; subsequent steps reuse the optimized graph.

SDMA Prototype Benchmark

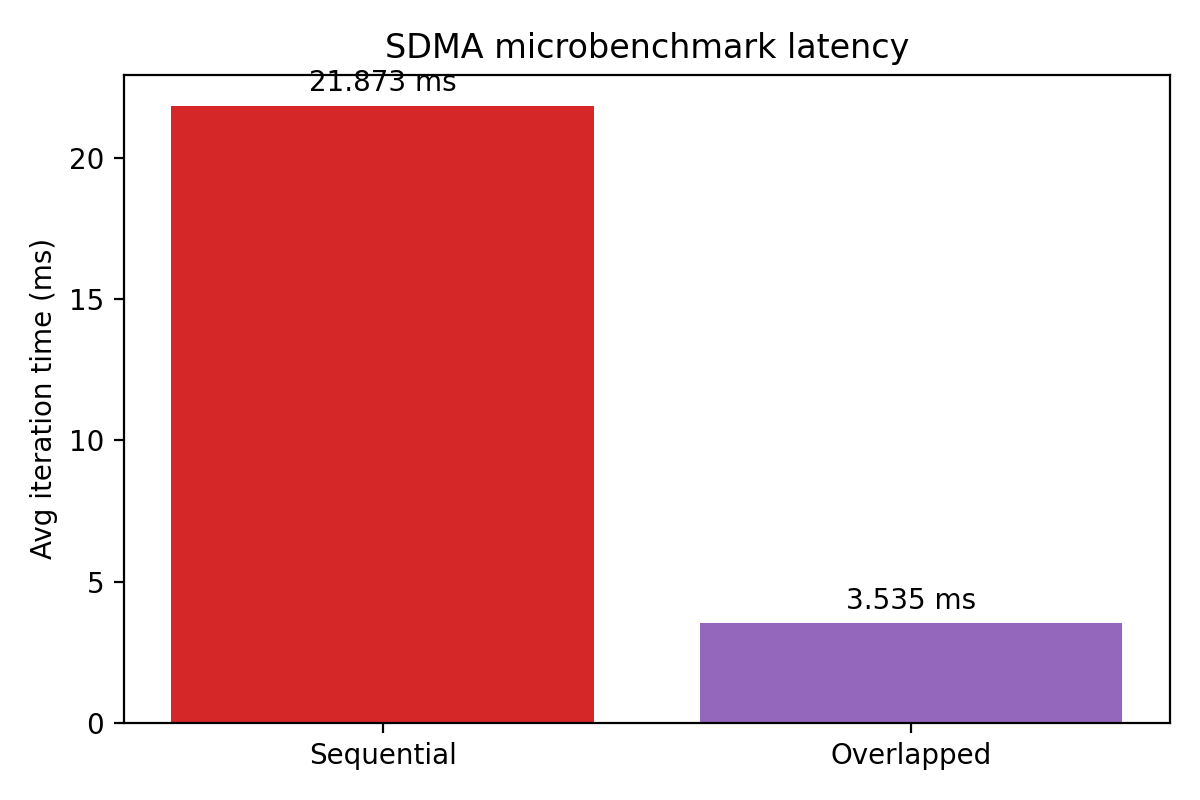

SDMA Benchmark

To measure theoretical compute/SDMA overlap on ROCm without modifying the full training loop:

python scripts/run_sdma_prototype.py --device 0 --matrix-size 4096 --copy-mb 64

The script:

Launches GEMM-heavy kernels on one stream while issuing hipMemcpyAsync transfers on a high-priority stream
Reports the average duration with and without overlap plus the estimated savings

Use rocprofv3 (or scripts/rocprof_capture.sh) against this benchmark to inspect SDMA engine utilization and validate whether transfers run concurrently with compute.

Next Steps

Configuration Guide - Tune model and training parameters
Profiling Guide - Capture and analyze traces
