Programming Model

Iris is an open-source triton-based framework for Remote Memory Access (RMA)[1] operations written in only a few 100 lines of code. Iris provides SHMEM-like APIs within Triton for Multi-GPU programming.

Traditional vs. Iris Approach

Contemporary Approach (e.g., RCCL)

The traditional approach relies on CPU-initiated control flow with bulk-synchronous communication phases:

Contemporary approach showing CPU-initiated control path with separate compute and RCCL communication kernels, requiring host-device synchronization.

Key Attributes:

• CPU initiates communication (control path): Host orchestrates all GPU operations

• Bulk-synchronous communication phases: Complete separation of compute and communication

• Remote device communication may not begin early: Stream synchronization delays prevent early communication start

World of Iris

Iris enables GPU-initiated communication control path with device-side primitives:

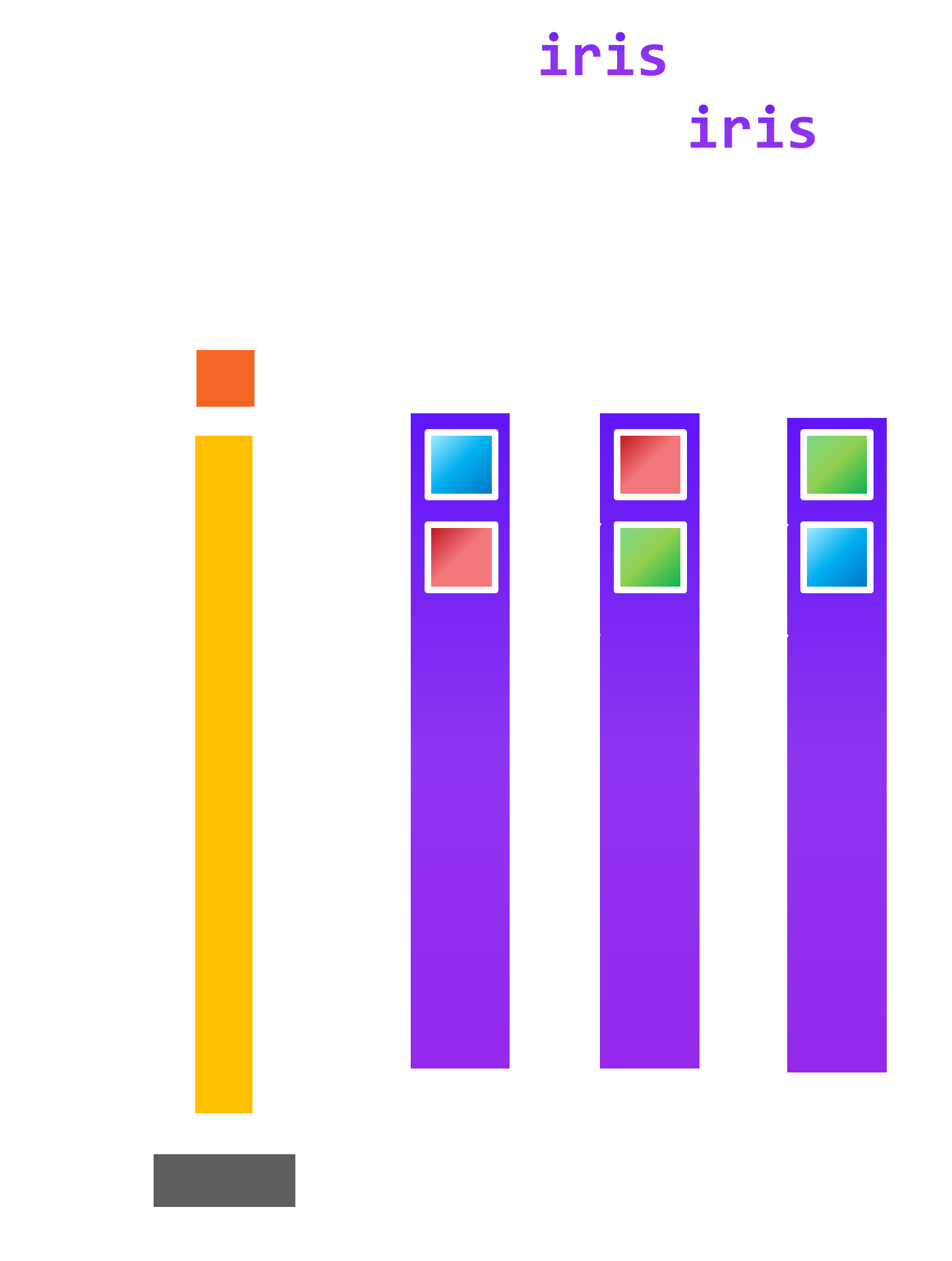

Iris approach showing GPU-initiated control path where communication can begin as soon as data is produced, enabling fine-grained overlap within fused kernels.

Key Attributes:

• GPU initiates communication control path: Device-side control eliminates host overhead

• Dynamic communication phases: Communication happens naturally as data becomes available

• No intermediate buffers: Data written directly to application

• Remote device communication may begin as soon as data is produced: Fine-grained overlap at work-group granularity

• Suitable for tiled algorithms: Natural fit for blocked matrix operations

• Suitable for partitioned communication/computation schemes with specialized roles: Enables producer-consumer and work group specialization patterns

1. Designed by Experts, Built for Scale

   • Written from scratch by GPU and distributed computing experts

   • Minimal dependencies: only Triton, PyTorch, and HIP runtime

   • No external frameworks or heavyweight runtimes beyond core stack

2. Clean Abstractions

   • Full Symmetric Heap implementation in Python

   • Pythonic PyTorch-like host APIs for tensor allocation and construction

   • Pythonic Triton-style device APIs for load, store, and atomic ops

3. Communication + Computation

   • Device-side collective ops: broadcast, scatter, reduce, etc.

   • Lock variants for communication and computation overlap

   • Fine-grained GEMM + communication overlap via workgroup specialization

4. Scalable by Design

   • Full scale-up (multi-GPU node) support

   • Scale-out (multi-node) in progress

Simple load & store APIs

@triton.jit
def load(pointer, to_rank, from_rank, heap_bases, mask=None):
    """
    Loads a value from the specified rank's memory location.

    This function performs a memory read operation by translating the pointer
    from the from_rank's address space to the to_rank's address space and loading
    data from the target memory location. If the from_rank and to_rank are the same,
    this function performs a local load operation.

    Args:
        pointer (triton.PointerType, or block of dtype=triton.PointerType): Pointer in the from_rank's address space that will be translated to the to_rank's address space. Must be the current rank where the pointer is local.
        to_rank (int): The rank ID to which the pointer will be translated. Must be the current rank where the pointer is local.
        from_rank (int): The rank ID from which to read the data.
        heap_bases (triton.PointerType): Array containing the heap base addresses for all ranks.
        mask (Block of triton.int1, optional): If mask[idx] is false, do not load the data at address pointer[idx]. Defaults to None.

    Returns:
        Block: The loaded value from the target memory location.
    """

@triton.jit
def store(pointer, value, from_rank, to_rank, heap_bases, mask=None):
    """
    Writes data to the specified rank's memory location.

    This function performs a memory write operation by translating the pointer
    from the from_rank's address space to the to_rank's address space and storing
    the provided data to the target memory location. If the from_rank and to_rank are the same,
    this function performs a local store operation.

    Args:
        pointer (triton.PointerType, or block of dtype=triton.PointerType): Pointer in the from_rank's address space that will be translated to the to_rank's address space. Must be the current rank where the pointer is local.
        value (Block): The tensor of elements to be stored.
        from_rank (int): The rank ID from which the pointer originates. Must be the current rank where the pointer is local.
        to_rank (int): The rank ID to which the data will be written.
        heap_bases (triton.PointerType): Array containing the heap base addresses for all ranks.
        mask (Block of triton.int1, optional): If mask[idx] is false, do not store the data at address pointer[idx]. Defaults to None.

    Returns:
        None
    """

iris Symmetric Heap & Implementation

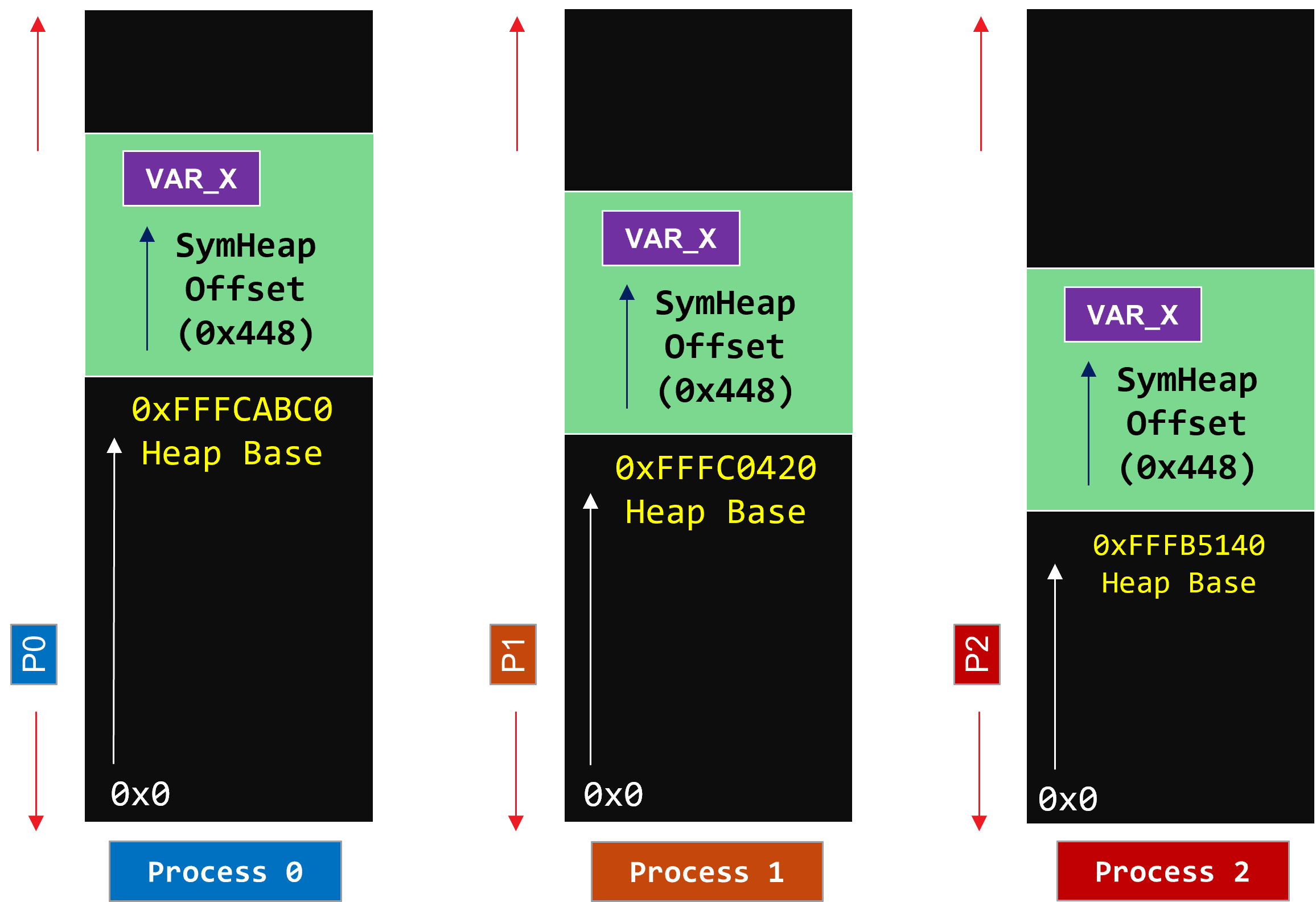

Symmetric Heap is a Partitioned Global Address Space (PGAS) abstraction Key idea is that you can know the remote address of any symmetric variable with two offsets:

1. Offset of target Process’ heap base in its virtual address space

2. Offset of the variable within the symmetric heap

Allocation routine for symmetric variables must be collective or offset must be known. Must all_gather the base heap addresses across all processes.

@triton.jit
def load(pointer, to_rank, from_rank, heap_bases, mask=None):
    translated_ptr = __translate(pointer, from_rank, to_rank, heap_bases)
    result = tl.load(translated_ptr, mask=mask)
    return result

@triton.jit
def __translate(ptr, from_rank, to_rank, heap_bases):
    from_base = tl.load(heap_bases + from_rank)
    to_base = tl.load(heap_bases + to_rank)
    ptr_int = tl.cast(ptr, tl.uint64)
    offset = ptr_int - from_base
    to_base_byte = tl.cast(to_base, tl.pointer_type(tl.int8))
    translated_ptr_byte = to_base_byte + offset
    translated_ptr = tl.cast(translated_ptr_byte, ptr.dtype)

    return translated_ptr

---

[1]

Remote Direct Memory Access (RDMA) is work-in-progress.
