Taxonomy of Multi-GPU Programming Patterns#
This page describes the taxonomy of programming patterns for fine-grained multi-GPU computation and communication overlap, focusing on GEMM + All-Scatter as a representative example.
Background: Contemporary vs. Iris Approaches#
Bulk Synchronous Programming Model (Contemporary)#
The traditional approach, exemplified by frameworks like RCCL, follows a stop-and-go pattern:

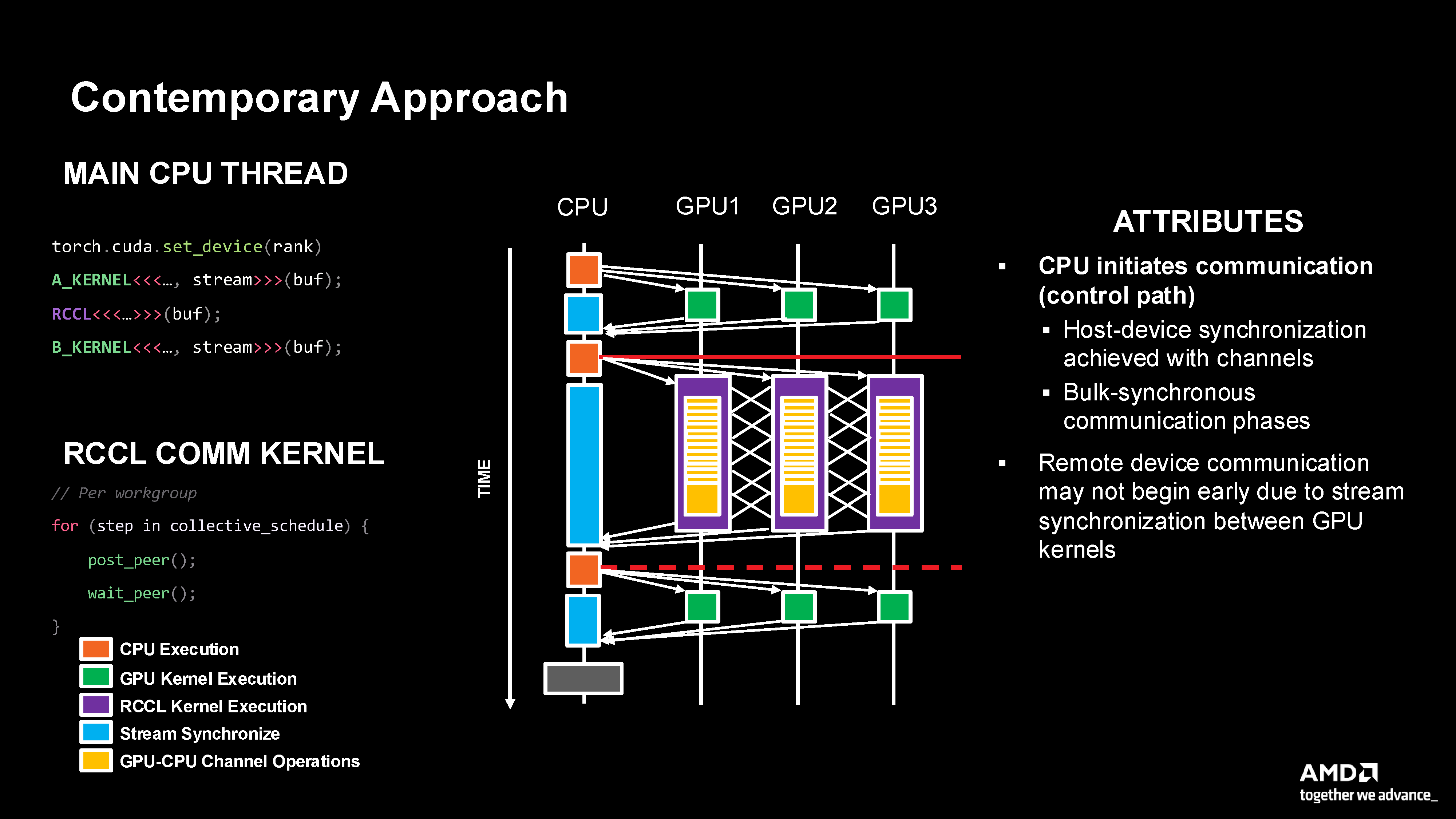

Contemporary approach showing CPU-initiated control with separate compute and RCCL kernels requiring host-device synchronization.
Limitations:
CPU-initiated control path
Requires host and device synchronization
Stop-and-go execution creates inefficiencies
Cannot achieve fine-grained overlap
Iris Approach#
Iris enables device-side primitives that allow natural work-group-centric programming:

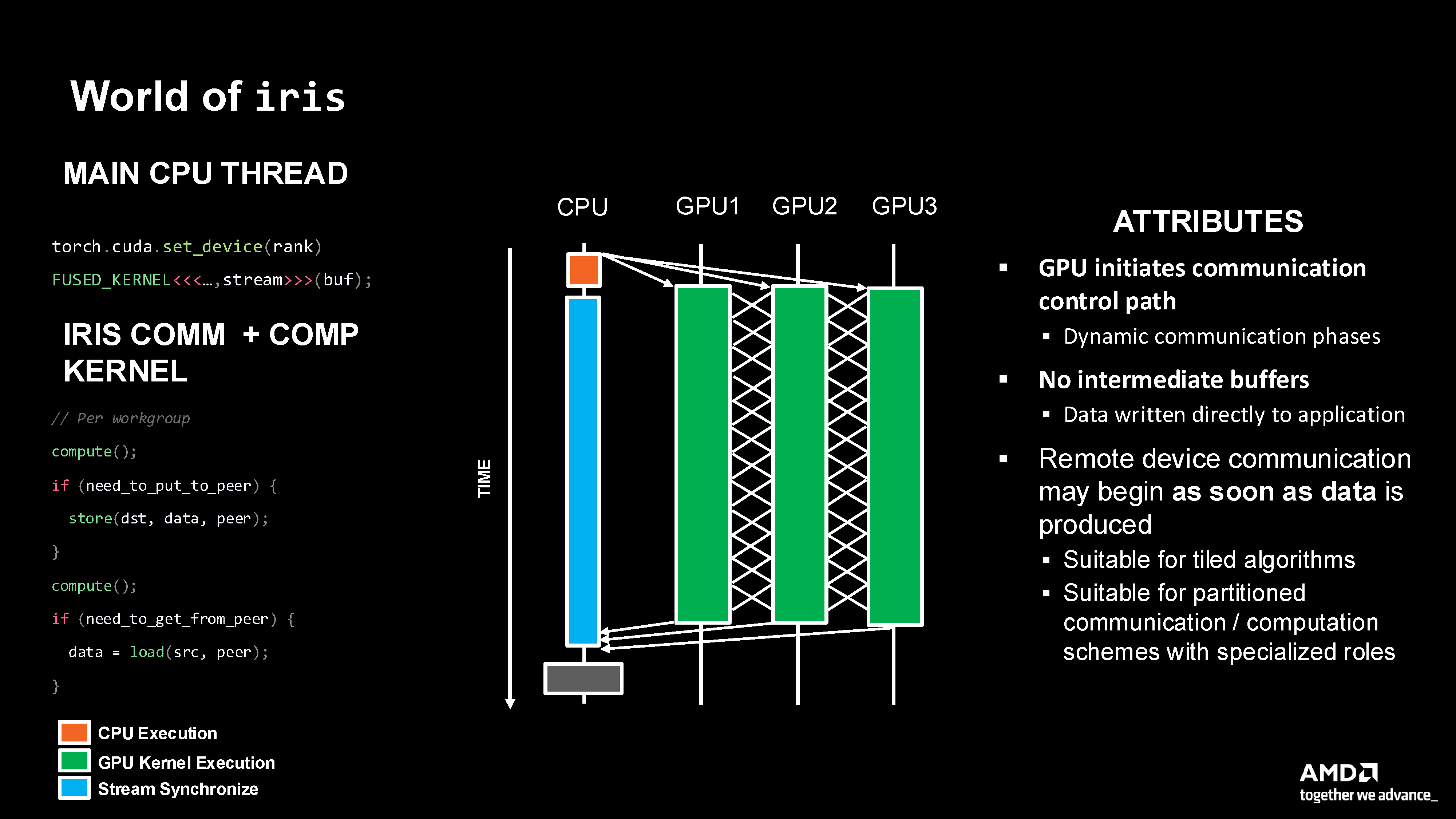

Iris approach with GPU-initiated control where communication begins as soon as data is produced, enabling fine-grained overlap.
@triton.jit
def kernel(...):
# Compute at work group granularity
result = compute(...)
# Store to remote GPU (no intermediate buffers)
iris.store(buffer + offsets, result, cur_rank, remote_rank, heap_bases)
# Continue with more compute
# Load from remote GPU
data = iris.load(buffer + offsets, cur_rank, remote_rank, heap_bases)
Advantages:
No intermediate buffers required
No synchronization overhead between compute and communication
Remove device communication may begin as soon as the data is produced
Fine-grained control over resource allocation
Programming Pattern Taxonomy#
The fundamental insight is that achieving peak performance requires computation-communication overlap. Iris provides multiple programming patterns to achieve this overlap, each with different trade-offs.
Pattern Classification#

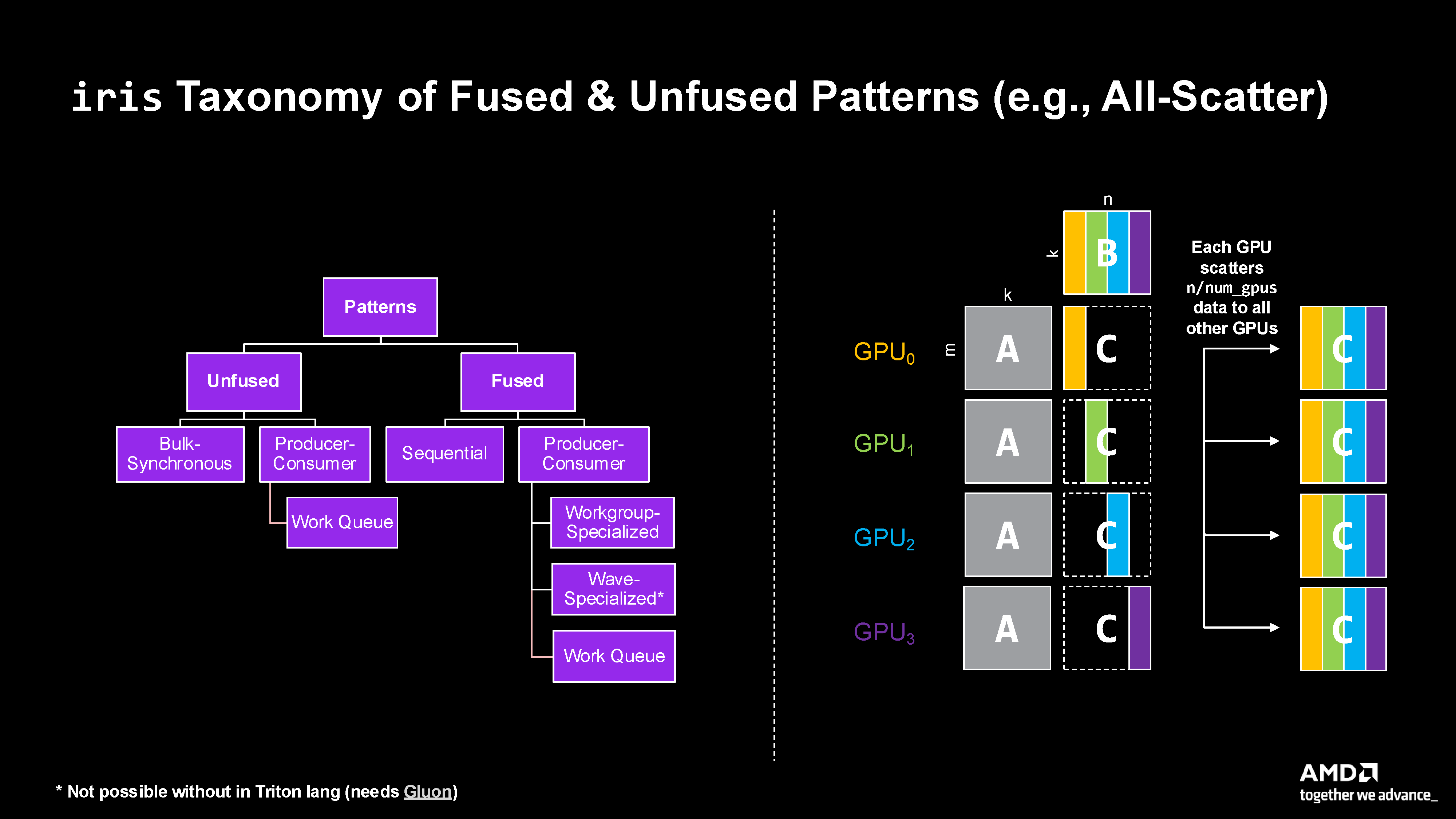

Figure 1: Complete taxonomy of fused and unfused patterns in Iris, illustrated with an All-Scatter example across multiple GPUs.
Pattern Details#
1. Unfused Bulk Synchronous#
Description: Traditional approach with separate compute and communication kernels, synchronized at the host.
Example Implementation: examples/12_gemm_all_scatter_bulk_synchronous
Characteristics:
Two separate kernel launches
Hard barrier (CPU synchronization) between kernels
All CUs assigned to compute, then all to communication
No overlap between computation and communication

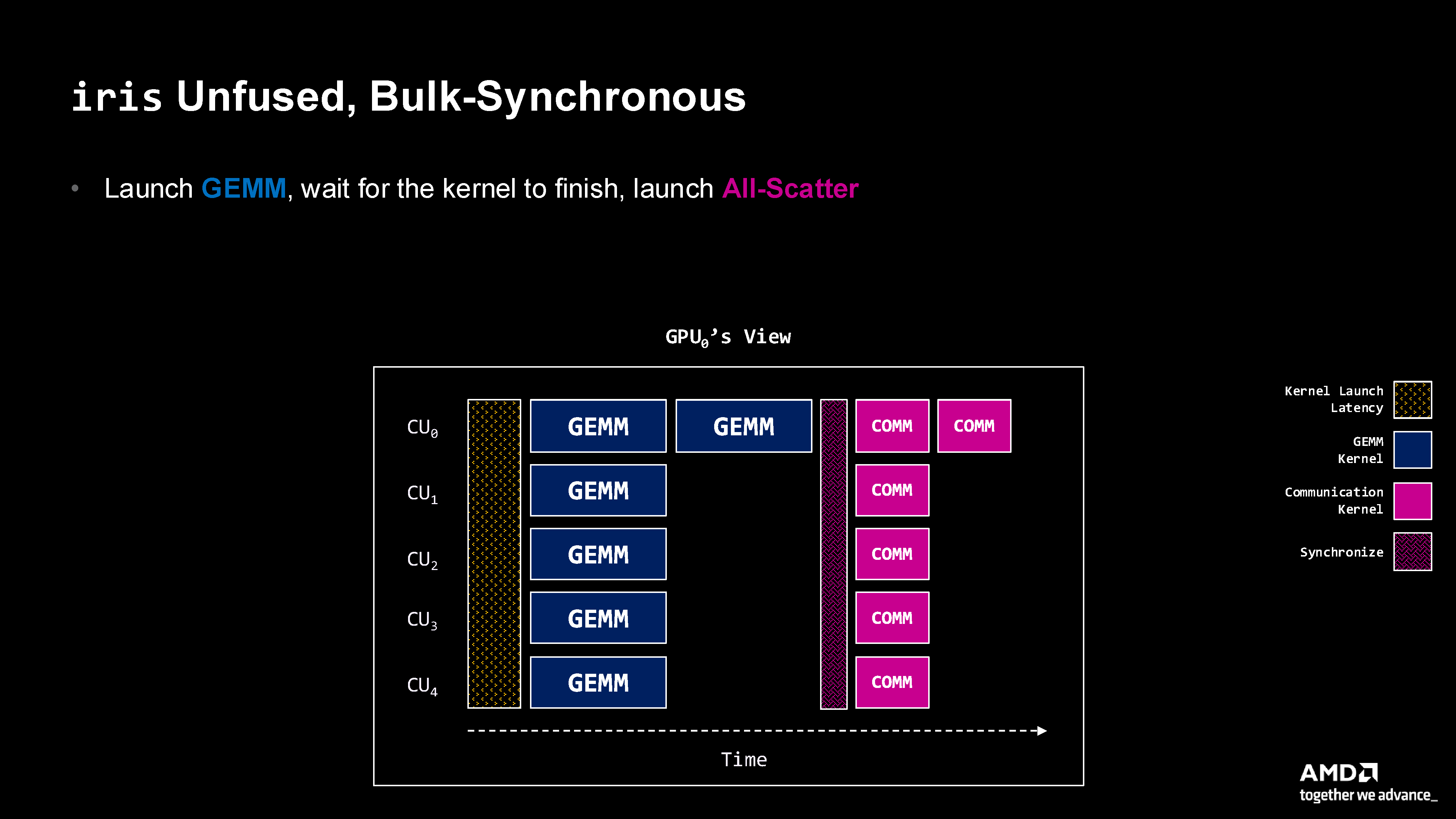

Figure 2: Bulk synchronous execution showing complete separation of compute (GEMM) and communication phases with synchronization barriers.
Use Case: Baseline implementation; matches RCCL-style collectives
Performance: Provides slight gains through kernel specialization but lacks overlap benefits

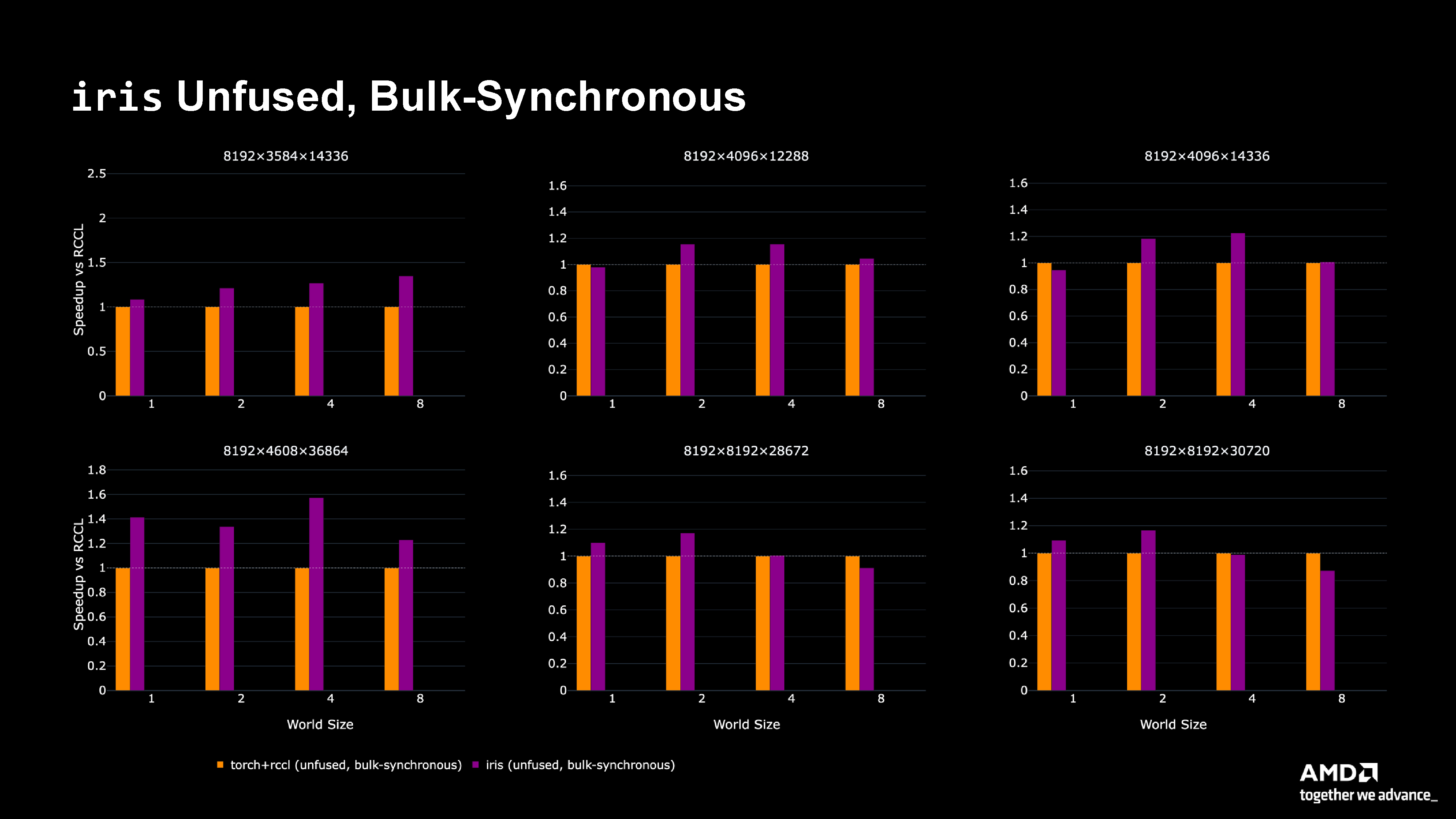

Figure 3: Performance comparison showing bulk synchronous (purple) vs. torch+rccl (orange) across various matrix sizes.
2. Unfused Producer-Consumer#
Description: Separate compute and communication kernels running concurrently with fine-grained synchronization.
Example Implementation: examples/11_gemm_all_scatter_producer_consumer
Characteristics:
Two kernels launched on different streams to establish concurrency
GPU partitioned between compute CUs and communication CUs
Producer (compute) releases tiles as they complete
Consumer (communication) spins waiting for tiles, then consumes them
Uses atomic operations with acquire/release semantics for synchronization

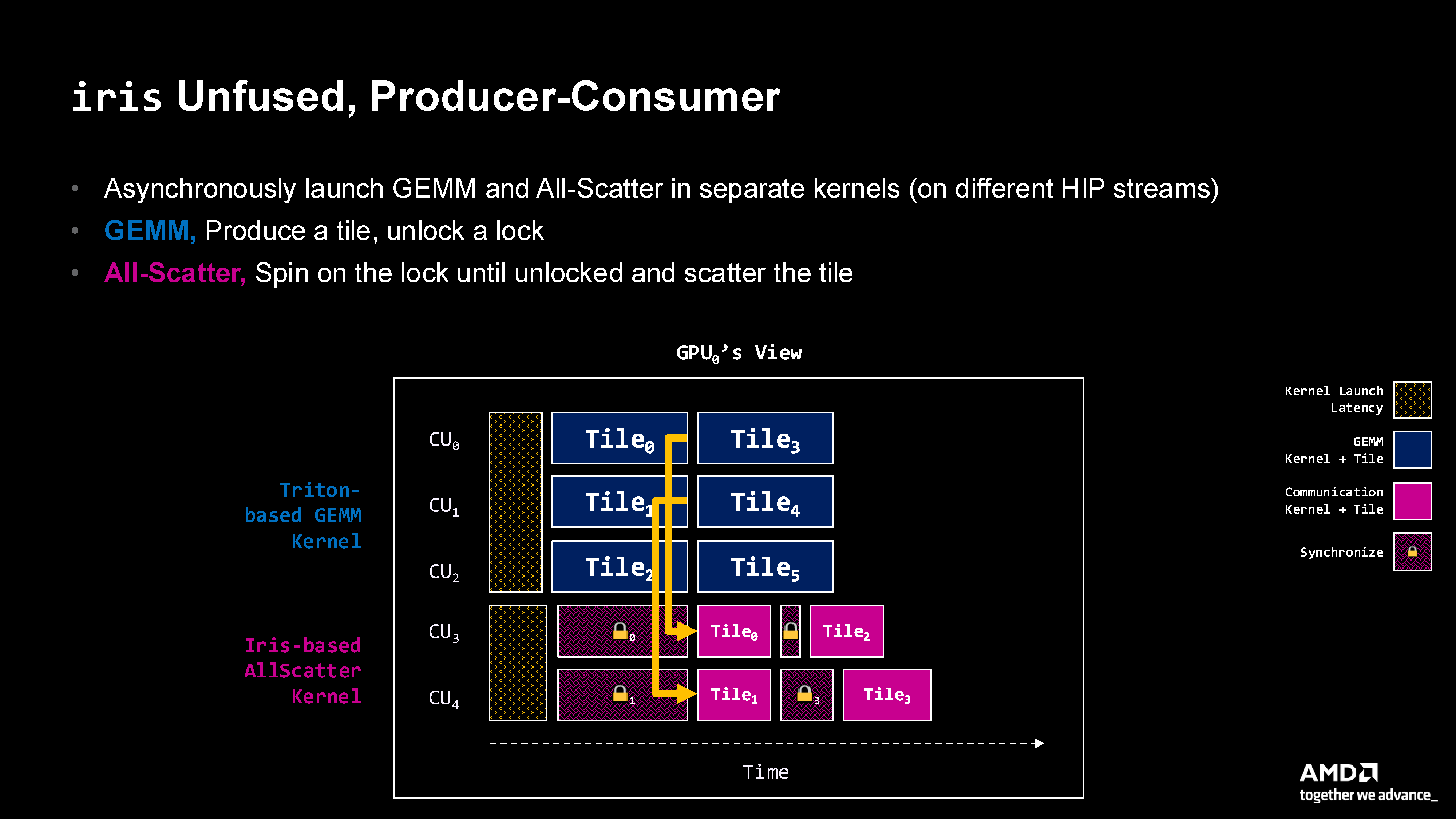

Figure 4: Producer-consumer pattern showing concurrent GEMM (producer) and All-Scatter (consumer) kernels with lock-based synchronization. Note the overlap between tile computation and communication.
Implementation Pattern:
# Producer side
compute_tile(...)
# Release pattern - notify tile is ready
iris.atomic_cas(flag + tile_id, 0, 1, consumer_rank,
sem="release", scope="sys")
# Consumer side
# Acquire pattern - wait for tile
done = 0
while done == 0:
done = iris.atomic_cas(flag + tile_id, 1, 0, consumer_rank,
sem="acquire", scope="sys")
# Consume data
data = iris.load(buffer + offsets, consumer_rank, mask=mask)
Key Decision: GPU partitioning (e.g., 256 CUs for compute, 48 CUs for communication)
Performance: Achieves significant speedups (up to 2.5x) through compute-communication overlap

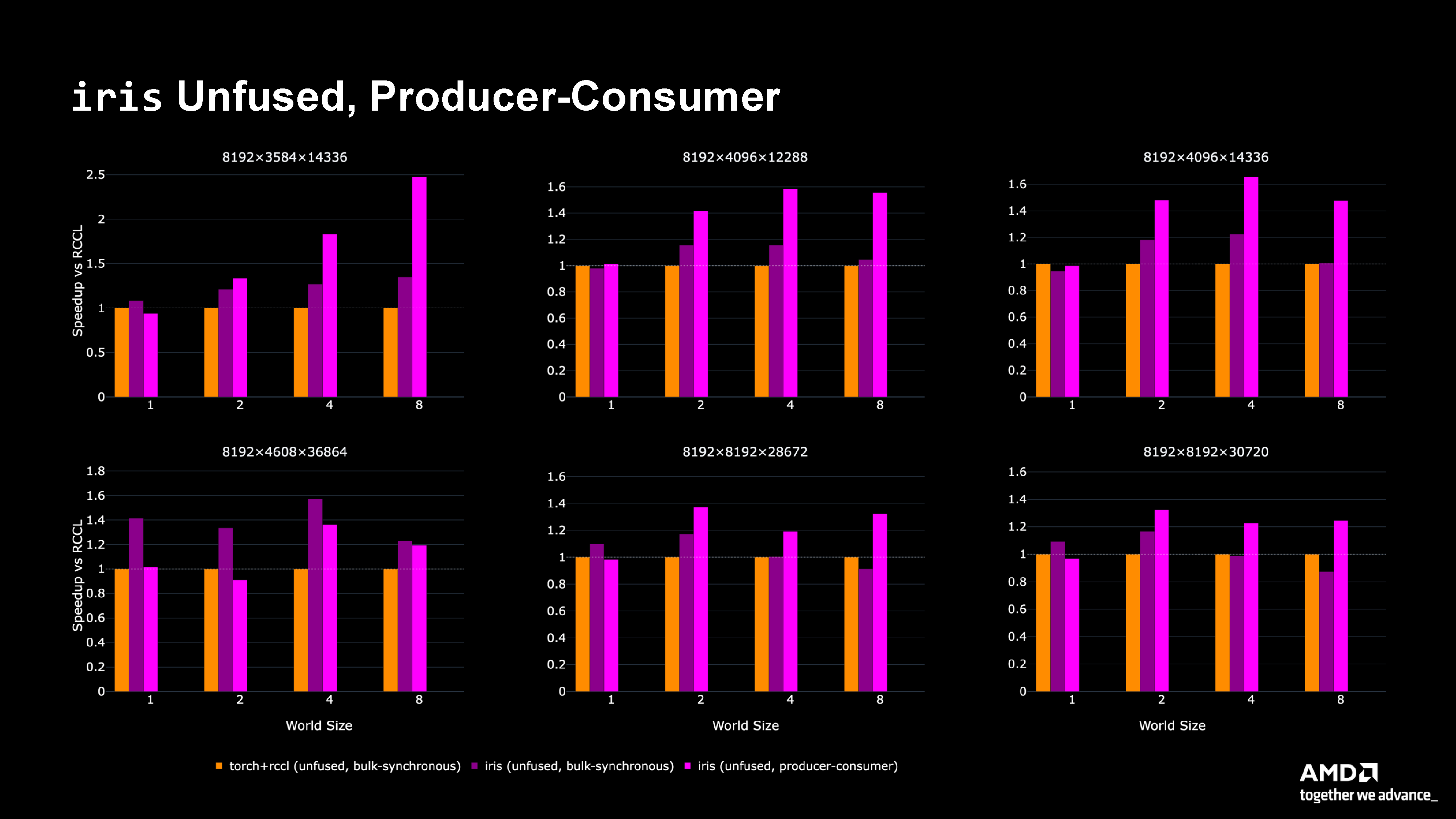

Figure 5: Performance comparison showing producer-consumer (pink) achieving up to 2.5x speedup compared to bulk synchronous approaches.
3. Fused Sequential#
Description: Single über-kernel that computes then communicates sequentially.
Example Implementation: examples/07_gemm_all_scatter
Characteristics:
Single kernel launch
Data stays in registers (no HBM writeback between phases)
Each work group: compute tile → scatter tile → repeat
No explicit synchronization needed within work group

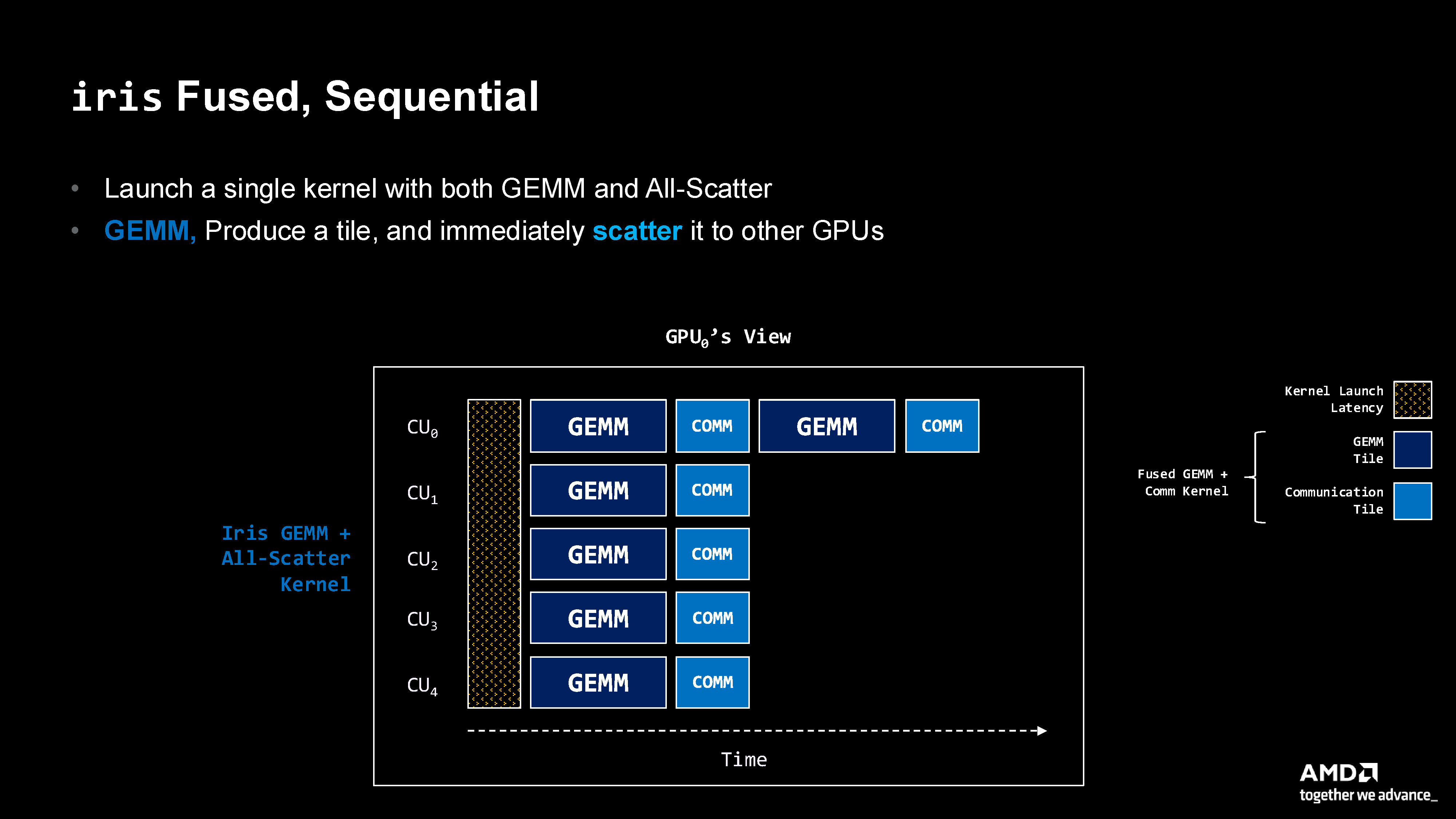

Figure 6: Fused sequential pattern showing GEMM and communication tightly coupled within a single kernel, with data remaining in registers between phases.
Advantages:
Simplest fused implementation
Avoids HBM round-trip for intermediate data
Reduces memory bandwidth pressure
Disadvantages:
Increased register pressure
Tail effect amplified (idle resources at kernel end)
No concurrent execution of compute and communication
Use Case: Problems where register pressure is manageable and simplicity is valued

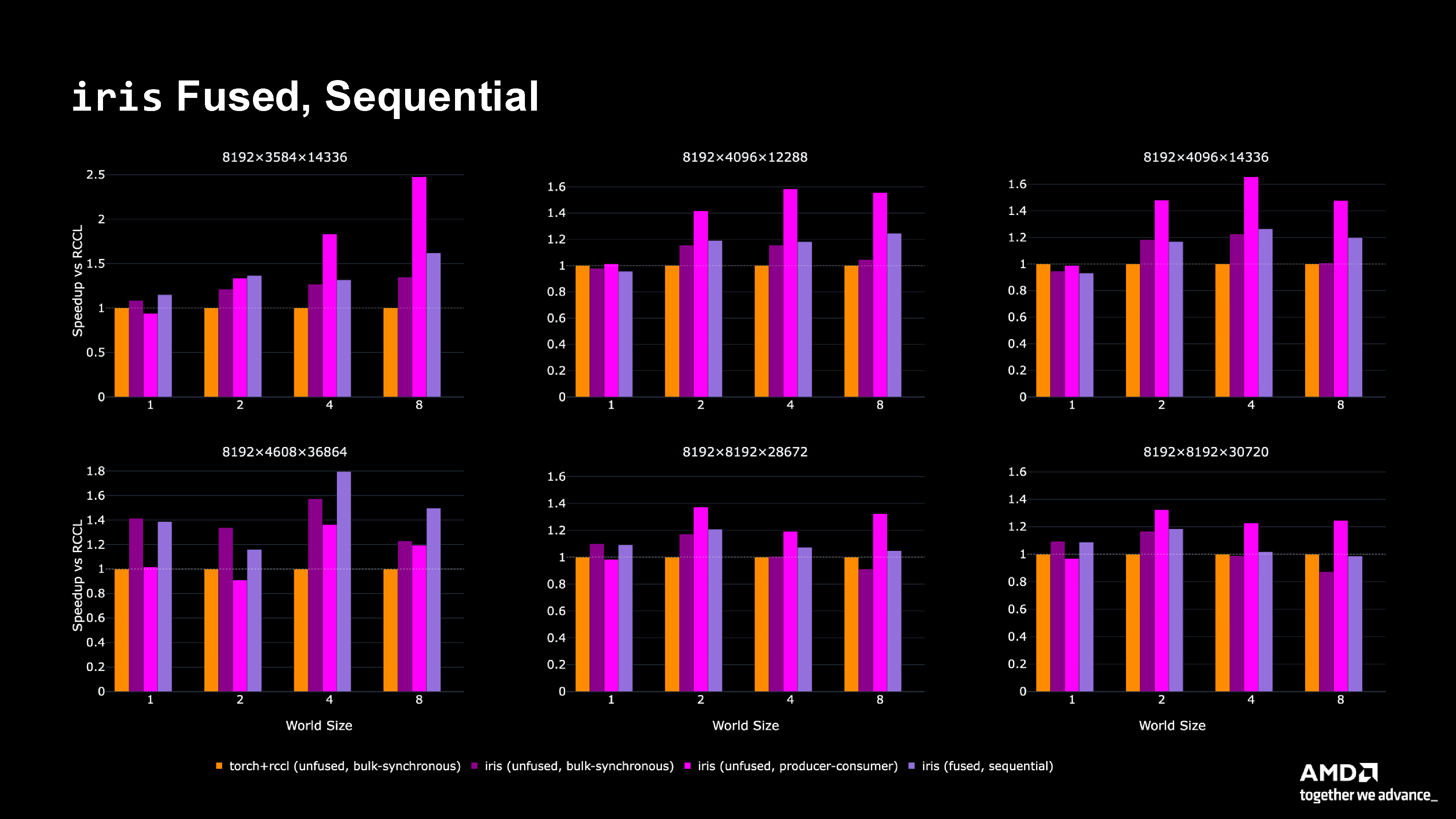

Figure 7: Performance comparison including fused sequential (light purple) showing competitive performance with reduced memory bandwidth usage.
4. Fused Producer-Consumer with Work Group Specialization#
Description: Single kernel where work groups specialize as either producers or consumers at launch.
Example Implementation: examples/10_gemm_all_scatter_wg_specialization
Characteristics:
Single kernel with branching at entry:
if (block_id < num_gem_cus)Producer work groups: compute tiles and release locks
Consumer work groups: acquire locks and scatter tiles
Fine-grained synchronization using atomics with GPU scope
Producer-consumer relationship within a single kernel

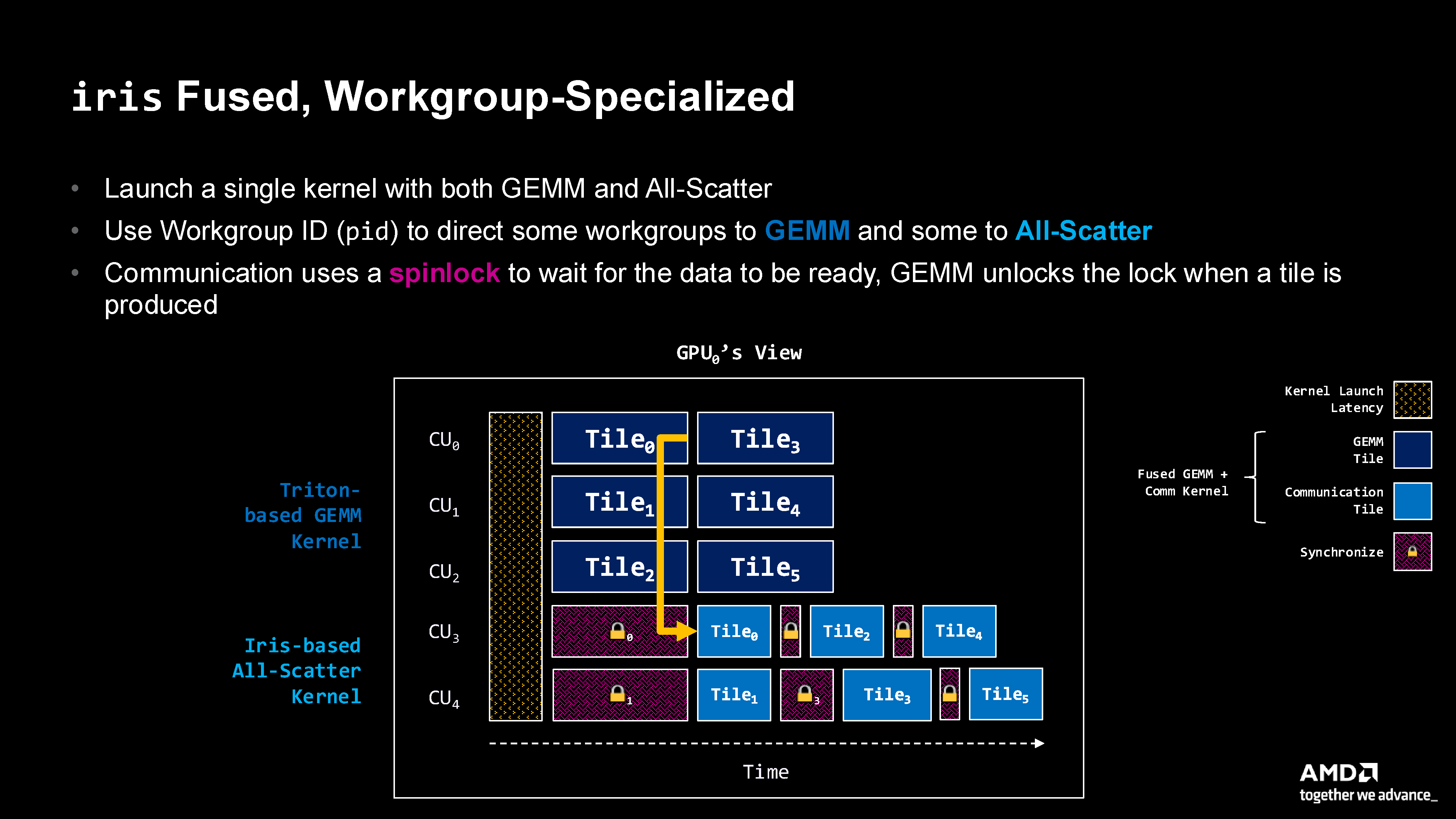

Figure 8: Work group specialization pattern showing a single kernel with work groups specialized as producers (CU₀-CU₂) or consumers (CU₃-CU₄), using spinlocks for fine-grained synchronization.
Implementation Pattern:
@triton.jit
def fused_kernel(...):
if pid < num_gem_cus:
# Producer: compute tile
result = compute_gemm_tile(...)
store_result(result, ...)
# Release lock
iris.atomic_cas(flag, 0, 1, sem="release", scope="gpu")
else:
# Consumer: wait and scatter
while not acquired:
acquired = iris.atomic_cas(flag, 1, 0, sem="acquire", scope="gpu")
scatter_tile(...)
Advantages:
Better resource utilization (single kernel overhead)
Potential locality benefits (producer and consumer co-resident)
No stream synchronization overhead
Performance: Achieves strong speedups (up to 2x) for certain problem shapes

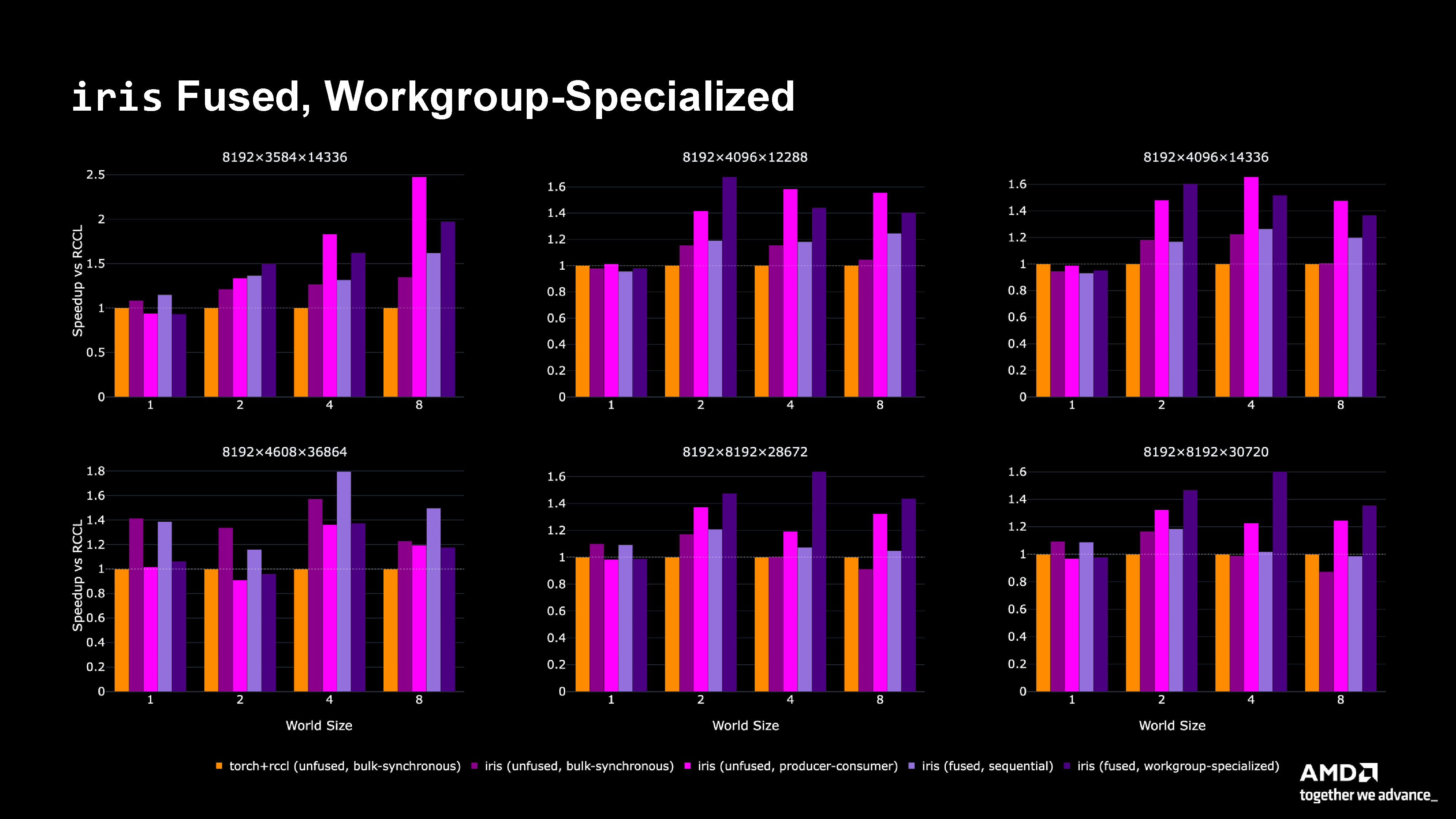

Figure 9: Comprehensive performance comparison showing all patterns. Work group specialization (dark purple) achieves the best performance for most problem sizes, demonstrating up to 60% improvement over producer-consumer patterns.
5. Fused Producer-Consumer with Wavefront Specialization#
Description: Specialization at the wavefront level within work groups (future work).
Status: Not yet implementable in standard Triton; requires Gluon
Potential Benefits:
Even finer-grained resource partitioning
Better cache locality
Reduced synchronization overhead
Design Philosophy#
Iris embraces a core principle: Provide low-level device APIs that enable rapid exploration of all these patterns.
Rather than prescribing one “best” approach, Iris empowers developers to:
Quickly prototype different patterns (examples implemented in ~10 minutes to 1 hour)
Experiment with GPU partitioning strategies
Optimize for specific problem characteristics
Discover novel patterns not yet in this taxonomy
The goal is to make fine-grained multi-GPU programmability a first-class citizen in Triton, maintaining both programmability and performance.
See Also#
Programming Model - Core concepts and APIs
Fine-grained Overlap - Detailed examples of overlap techniques
Examples - Code examples for each pattern
